When it comes to smart sweepers, the first sensation for consumers must be tall, but with the advent of the wave of smart hardware products, expensive sweepers have now allowed more consumers to experience the fun. Can these sweepers really be “intelligent� In fact, many consumers who actually buy tend to have sweeping sweepers that have a sweeping effect, and sometimes they don’t have the intelligence that they imagined in the path planning for sweeping. They are like a The headless flies rushed around in the room. Not only was the sweeping efficiency unsatisfactory, but also the sweeping machine's life and noise had become problems.
Today, smart sweepers have new options. Today, Xiaobian will bring you a revolutionary smart sweeper equipped with automatic 2D path planning and the world's first real-time visualization APP. Robots (hereinafter referred to as inxni).
Packaging and unpacking
Due to the limitation of the volume, the cleaning robot's packaging often looks very "tall", and of course within the inxni is no exception, the packaging uses the upper and lower parts of the design, the main color is very clean white, the front is its brand LOGO.

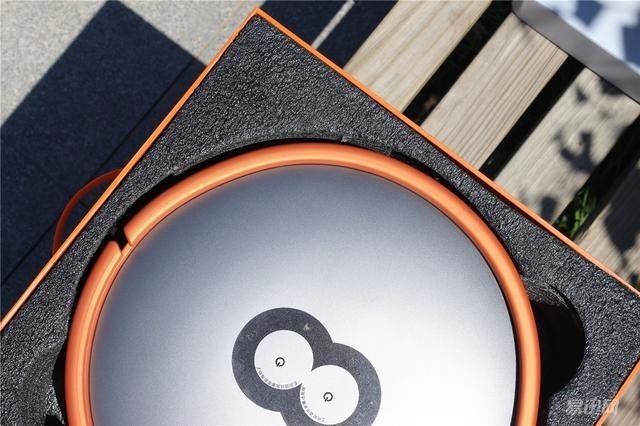

In order to ensure the safety of transportation within inxni, the inside of the package is wrapped with a thick foam sponge, inside the inxni is located in the middle of the package, and the bottom layer is its accessories.
The product net weight within inxni is 3.7KG, the gross weight of the product is 7.5KG, and the package size is: 385×385×215mm
Appearance and design

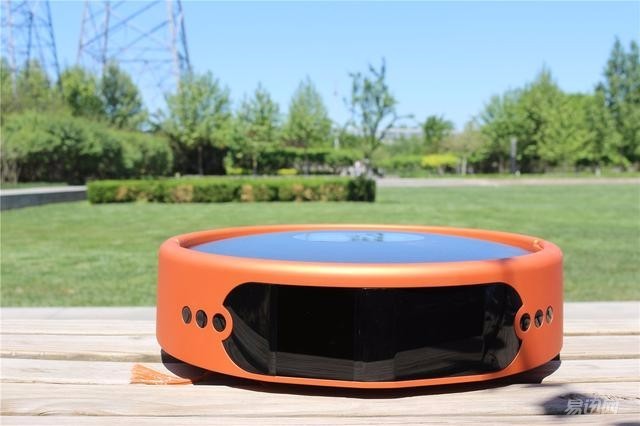

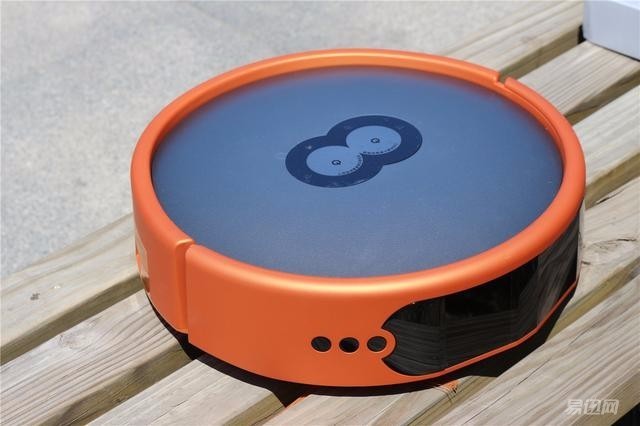

The main colors of inxni are basically gray and orange. The overall appearance of inxni is like a squashed cylinder. It is surrounded by orange and gray at the bottom and top.

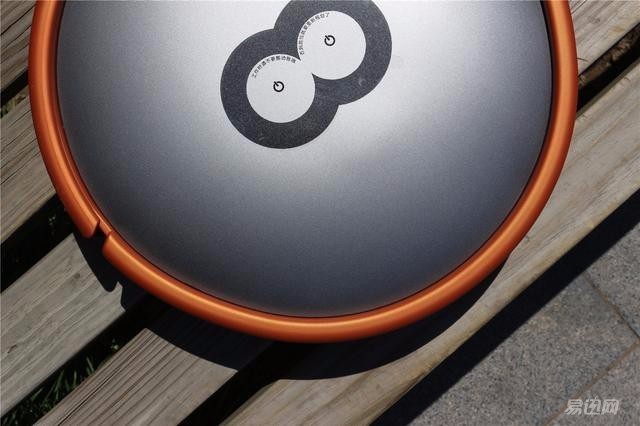

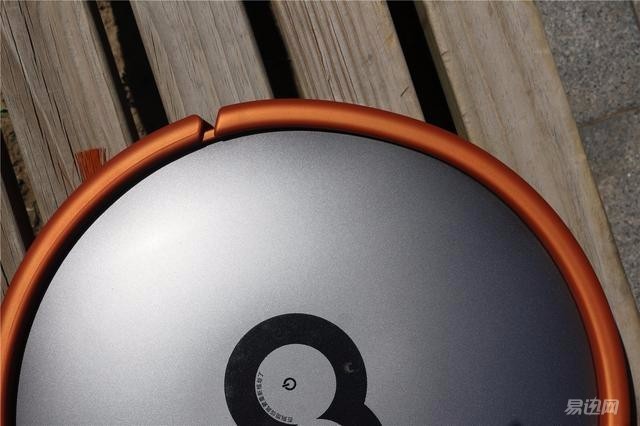

Inxni shell material is plastic, although the feeling is very light but the strength is still very high, especially the toughness is very good, in the top of the center there is an "∞" LOGO, in the periphery are: inxni status digital display, And operate touch buttons.
Structure and accessories
Inxni also comes with a set of accessories, including: screwdriver, side brush, cleaning filter and cleaning brush. A screwdriver allows the user to open the battery compartment to replace the battery. The side brush and the filter are consumables .
Special feature
The suction power of the internal sweeping robot has reached 600 pascals, and the superior suction force is due to the special structural design.
Many parts inside inxni are detachable, the dust box is located behind the inxni, the capacity is 350ml, and the inxni letters are very skillfully hollowed out as a vacuum outlet.
Inside the inxni dust box is behind the vacuum fan, but also the design of the buckle, the power of the fan using shrapnel contacts.
The fan is concentrated in a sealed box. The air outlet is hollowed out by inxni letters, and a layer of mesh structure is added in the middle.
The fan is located in the middle, but it is not a symmetrical structure. A layer of cotton-like material is added on the side of the fan as the filter material of the dust to ensure that dust and foreign matter do not enter the fan.
The fan box can also be removed by screws. The power supply is connected to the internal battery pack inside the inxni by the top two contact springs.
The parts of the inlet part of the suction box are also detachable, and the parts are also connected by a bayonet connection.
The clever bayonet design allows the user to easily clean and replace parts, and the intex air inlet rubber parts are replaceable.
The structural design of the various parts within inxni can be seen in its degree of intention, which is very useful for the user's more efficient use.
The smaller the smaller parts are, the more they can see the sincerity of the design of the product. The intrinsic heights of the various components within the inxni are the same, and the distance between the gaps is surprisingly consistent, benefiting from higher quality control.
The brand LOGO as a vacuum outlet, and the use of hollow design applied to a smart vacuum cleaner, Xiao Bian is the first time to see, and inxni the material is not as crisp as imagined, Xiao Bian try to parts from 1m high The location fell to the ground, only a slight ink mark appeared, it seems that the material's toughness is still good.
There are many details of structural components within inxni, but there are no traces of edging and other processing. It appears that the degree of craftsmanship is also very mature, and does not give the user a poor sense of cheapness.
The inxni side brush is different from other sweepers in that it uses a single-sided brush design, and only one is located on the left side of the machine and has a length of 80mm. The glue brush has a tapping function and the roller brush speed is 2000 rpm.
The inxni inner bottom brush and the metal protection net cover can be opened and removed through the snaps on one side, which is really convenient for the daily cleaning of the user.
Performance Testing
The two movement wheels within inxni can be independently moved and have their own suspension mechanism for suspension. Even slight protrusions on the ground can be well adapted to exercise.
The rubber tires on the surface of the wheels in inxni have been specially designed. The two drive wheels are suspended and designed to easily climb over a slope of 20 degrees. Using staggered concaves and convexes, similar to the "tank" track design, can effectively enhance the friction, the ability to adapt to the ground will be better.
In front of the bottom of the inxni is a non-powered universal wheel. The wheel itself only has the ability to roll back and forth. The bottom mechanism can achieve universal function.
Within the inxni packing box is also included a set of replacement parts and installation and removal tools, including: screwdriver × 1, side brush × 1, clean filter × 1, cleaning brush × 1 rubber pad × 10 ×.
As an intelligent navigation sweeping robot, the automatic charging function was necessary at that time. Of course, inxni is no exception.
The inxni charging seat consists of two parts, one part is the upright part, responsible for the machine's reliance and positioning.
The other part of the inxni charging cradle is the bottom, with two metal contacts on the front, which automatically charge when the machine contacts the bottom metal contacts of the battery with the metal contacts of the cradle.
Inxni built-in high-capacity rechargeable batteries, the bottom of the charging base is a small slope, when the head will be slightly lifted when charging.
Inside the inxni, the large black hood on the front of the sweeping robot's fuselage is equipped with a high-resolution laser detector with a scan rate of 108,000 revolutions per minute. With this detector, the AICU navigation system in inxni enables it to accurately position itself. And automatically create a 2D map on the mobile phone during cleaning. At the same time, the established maps can be updated in real time during the cleaning process, and obstacles are promptly evaded.
Inxni navigation sweeping robot is to use laser navigation, and locate the location for cleaning. In fact, when the machine is working, it is cleaned while scanning. Therefore, instant scanning does not affect its working efficiency. Each time, scanning and cleaning are performed according to actual conditions.
Inxni mobile phone end color and animation Xiao Bian are very fond of, the control method is to open the phone after the end automatically connected to the machine to generate WIFI control.
Inxni automatically creates a 2D map on the mobile phone during the cleaning process and displays it on the screen in real time. It has three basic options: fixed-point cleaning, returning to the charging dock, and automatic cleaning.
Fixed point cleaning only needs to click a coordinate point in the screen map, inxni will automatically move to this position and then "bow" type movement, automatically return after cleaning is completed.
After returning to the charging stand, no matter where inxni is inside, it automatically returns to the charging position.
Click on the automatic cleaning in inxni to establish a different clean area according to the established 2D map, and clean it area by area until the cleaning is completed.
Inxni currently only supports local mobile phone point-to-point WIFI control, so if you need to clean it automatically, you need to set up a clean schedule and set the clean date and time points.
In order to facilitate the user to understand the movement situation within the inxni, the mobile phone has a log function, which can easily query the previous state.
Precautions and Suggestions
1, the kitchen, bathroom floor will inevitably have water, stagnant water may lead to failure within inxni.
2. If there are slippers, scales, etc. on the ground, inxni may move to the wrong side, affecting cleaning, it is recommended to sort out similar slippers.
3, if there is a wire drag line, inxni may occasionally stuck in the above, it is recommended to tidy up.
4, some thicker or smaller floor mats, blankets, try not to touch him within inxni, may be towed by inxni within the movement.
5, if the sofa underground height is too low, inxni within the inside may not move, you can put a little higher sofa.
6. When connecting the machine, it is best to set the wireless network at home to not automatically link, because the machine itself is a wireless transmitter. If the home wifi signal is too strong, it may interfere with the connection of the machine itself.
