[PConline evaluation] Many people lament that the chassis market products are increasingly fancy, bright colors, quirky modeling, if the game player, the shape of the eSports flavor is really suitable, but for an office to think of The user, whether the appearance design is generous and beautiful is an important selection criterion. Today, we enter the Pacific Buffalo Tianrui chassis in our Pacific evaluation room. The shape is simple and unrefined, but it is suitable for home entertainment, business office, and learning design. Let us enter the evaluation below.
Buffalo Tian Rui Reference Price: Loading... Image Reviews Quotation Parameters Overview
â—Detailed parameters

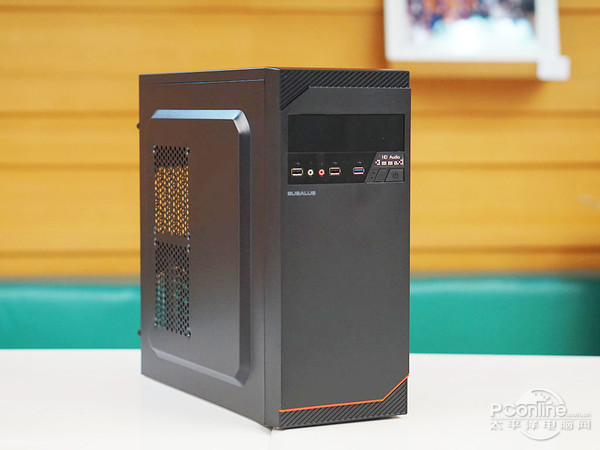

â— Buffalo Tian Rui appearance: a solid and pragmatic style of office
Time precipitation, years of baptism, all black design, red edge embellishment, low-key, but there is a kind of implicit wisdom. Buffalo Tian Rui uses imported cold-rolled carbon steel + high-quality high-density ABS plastic material, with black design, simple yet elegant. As an office-level chassis for home entertainment, business office, and learning design, the pure black theme provides another choice for low-profile players. Of course, as an office chassis, how can there be less optical drive, the more and more rare front drive design layout, do not have charm, full of retro sense!
Buffalo Tian Rui front schematic
Buffalo Tian Rui
It can be noted that the buffalo Tian Rui chassis front panel design low-key but exquisite, all the details of the design are ingenious, the middle of the decorative panel using acrylic material, black out of new ideas; the lower red bar design to break the chassis dull boring, to seemingly boring The chassis adds a touch of vigor; the up and down twill design is both beautiful and user-friendly to move the chassis, killing two birds with one stone. The rest of the front panel has a frosted paint design that also provides a different visual and tactile feel.
Buffalo Tian Rui left side schematic
Buffalo Tian Rui
Buffalo Tian Rui right side schematic
It can be observed that the left and right side panels of the buffalo Tianrui chassis adopt a common central protrusion design, which reserves enough space for the chassis to carry the back line, so that the overall back line is clean and tidy, allowing users to manage the cables and installation hardware. . The difference is that the left side plate does not adopt the popular large-area side-through design. Instead, it adopts a central protrusion and two fan-bit heat-dissipation network surfaces. Compared with the large-area side-through, this design is the inside of the chassis. To free up more space, it also provides more than two 120mm fan positions for the chassis, which can cooperate with the rear fan and front fan of the chassis to create multi-wind-through heat dissipation.
Buffalo Tian Rui top schematic
The design of the top buffalo Tian Rui chassis is relatively simple, without adding too much design, a single plate, there is no bright spot.
Buffalo Tian Rui back schematic
From the design of the back of the chassis, we can observe that the buffalo Tianrui adopts a power supply ceiling design. This design shares the same characteristics with the common power supply to make more room for the interior of the chassis to meet the installation requirements of DIY players. However, the difference is that the power top is more conducive to the overall heat dissipation of the chassis, because the air expands upwards due to thermal expansion. This design avoids the situation where the heat generated by the power supply flows to other components of the chassis and effectively prolongs the life of other components. In addition, it can be seen that there is an 80mm fan position and seven PCI slots on the back of the chassis. The rear-mounted fan facilitates the heat dissipation of the power supply and the motherboard. The seven-slot configuration is sufficient for users who are pursuing performance for the dual-card platform and even three cards. demand.
Buffalo Tian Rui bottom schematic
The bottom and back of the buffalo Tianrui chassis have barely leaked material from the chassis frame. In addition to a few fixed holes on the bottom of the chassis, there is no heat dissipation window and high foot design. It can be seen from the figure that the chassis is not designed with a power supply.
Buffalo Tian Rui I/O location
The buffalo Tian Rui chassis I/O area is set at the top of the front panel, built-in a USB * 3.0 interface, 2 USB 2.0, audio interface, power switch restart button, light and so on. USB2.0 and USB3.0 are separately set. Obvious classification is quite user-friendly and prevents misoperation. The top partner of the original Eco USB 3.0 and USB 2.0 is extremely beneficial for copying large files of high-definition audio and video GB.
Above the operation area is our long-lost drive design, which is very suitable for office use.
â— Buffalo Tian Rui internal: traditional power supply design
Buffalo Tian Rui internal overview map
The buffalo Tianrui chassis adopts imported cold-rolled carbon steel steel. The internal structure adopts the integrated front window rushing net structure and double rear window design. It embodies the rugged features of this chassis. The dense EMI metal shrapnel reflects the workmanship. The best side is to prevent radiation spillage and bring a healthy and comfortable experience environment. The chassis adopts the structure of the tower-type ATX, which can provide ample space for various large-size high-end hardware. It is internally compatible with ATX, M-ATX, and ITX board types, and supports 340mm mainstream graphics cards and 155mm high CPU heatsink installation. In addition, the chassis 3+2 HDD and SSD expansion standards are strongly supported, and the mixed dual power allows players to go in the vast world of gaming.
Buffalo Tian Rui back line
The buffalo Tianrui chassis side panel bulges provide sufficient back line space for the interior of the chassis, and the scientific back line design, together with the accurate measurement of the opening position, optimizes the trajectory of the route, and reduces the obstruction of the air duct. Optimize the cooling function.
Buffalo Tian Rui optical drive position
Buffalo Tian Rui hard drive bit
Buffalo Tian Rui hard drive bit
The Buffalo Tianrui chassis has one optical drive and four hard disk drives. One of the hard disk drives is compatible with HDD hard disks and SSD hard disks. Three 3.5-inch HDD hard disks and two 2.5-inch SSD hard disk bits, together with an externally-expanded USB 3.0 interface, provide support for large-capacity, high-speed storage. For most gamers, the three hard disk racks are more than enough, and the mixed dual power is enough to allow players to mix in the vast web world.
Buffalo Tian Rui Power Installation
Buffalo Tianrui adopts a power-overhead design to make more room for the interior of the chassis to meet the installation requirements of DIY players. As the air expands upward due to thermal expansion, the power supply ceiling design prevents the heat generated by the power supply from flowing to other components of the chassis, effectively prolongs the life of other components, and facilitates the overall heat dissipation of the chassis.
Buffalo Tian Rui PCI bit
Like other mid-turret chassis, the buffalo Tianrui chassis comes standard with seven PCI expansion slots, which facilitates the installation of other extended hardware and has good compatibility. Even dual-card interconnects are not too difficult.
Buffalo Tian Rui rear fan position
Buffalo Tian Rui rear set a 80mm fan reserved hole position.
Buffalo Tian Rui front fan position
Buffalo Tian Rui front a 120mm fan reserved hole position.
Buffalo Tian Rui side plate fan installation position
You can see from the side of the chassis, the buffalo Tian Rui side board can install two 120mm cooling fans.
The buffalo Tian Rui chassis front panel can be equipped with a 120mm cooling fan, and the back of the chassis can be installed with an 80mm cooling fan. In addition, unlike most ATX chassis, due to the chassis' power-supply design, the side panels of this chassis can be equipped with two 120mm fans, which can be combined with front and rear fans to create a 360° multi-duct straight-through. Heat dissipation.
Buffalo Tian Rui main pallet thickness
Buffalo Tian Rui side plate thickness
Thickness tests were performed on the main pallets and side panels of the buffalo Tianrui chassis. The data show that the thickness of the buffalo Tianrui board is 0.330mm and the thickness of the side board is 0.480mm. Although compared with other chassis, this chassis is thin, but it can protect the internal facilities of the chassis and is sufficiently effective to prevent leakage of electromagnetic radiation.
â—PConline evaluation room summary:
Price: Buffalo Tian Rui chassis price of 109 yuan, the chassis is still worth considering. In terms of appearance, the buffalo Tian Rui black design is simple and unrefined, but it is a good choice for low-profile players. Internally, the internal structure of the chassis is well-designed, but imports of cold-rolled carbon steel are relatively sharp and easy to cut. Be careful when installing the chassis.
Performance: Buffalo Tianrui chassis adopts imported cold-rolled carbon steel steel + high-quality high-density ABS plastic. The EMI-intensive metal shrapnel of the chassis can form a closed circuit to prevent radiation overflow. In addition, Tian Rui supports ATX, M-ATX, ITX and other boards, which can be installed inside the mainstream 340mm graphics card, multi-card interconnection easy to deal with. The 3+2 HDD and SSD expansion standards support backside routing as an office-grade pc, which is worth understanding.
Buffalo Tian Rui low-key designs look good, as an office-level chassis, optical drive design is a real plus points, and all aspects of internal performance have a good performance, now selling 109 yuan price, good price, interested players may wish Learn to understand.
